稼働環境

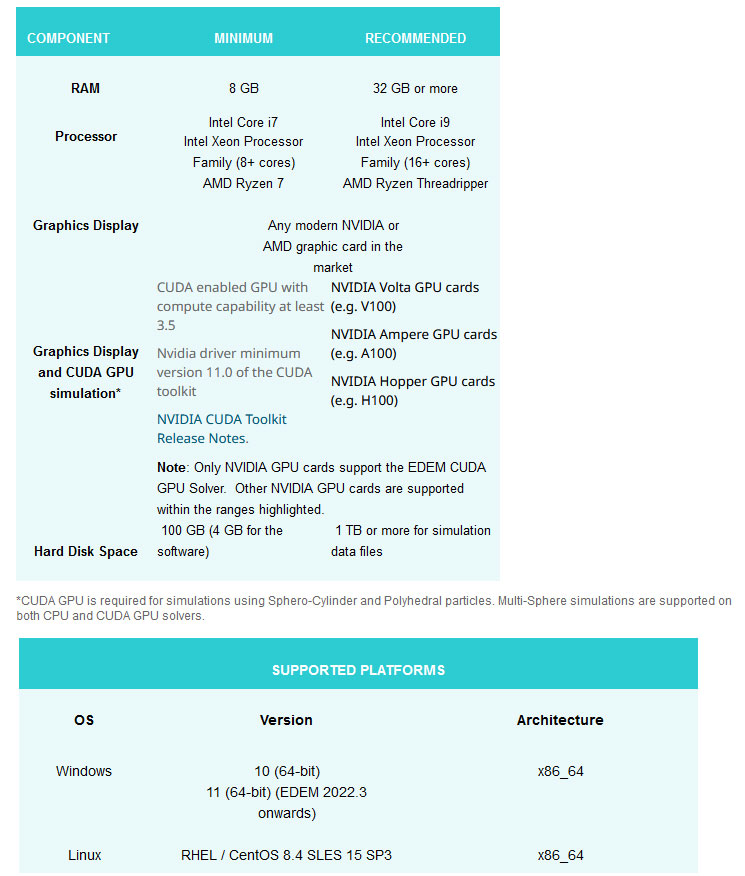

EDEMを稼働させるための最小と推奨のシステム要件は以下になります。(ver2025.1)

Component	Minimum	Recommended
RAM	8 GB	32 GB or more
Processor	Intel Core i7 Intel Xeon Processor Family (8+ cores) AMD Ryzen 7	Intel Core i9 Intel Xeon Processor Family (16+ cores) AMD Ryzen Threadripper
Graphics Display	Graphics Driver support for OpenGL 2.0 or later Any modern NVIDIA or AMD graphic card in the market which has display connectors Note:Some of the GPU Cards listed below do not have display connectors and are designed for processing only	Graphics Driver support for OpenGL 4.5 or later
CPU GPU Simulation	CUDA enabled GPU with compute capability at least 3.5 Nvidia driver minimum version 11.0 of the CUDA Toolkit NVIDIA CUDA Toolkit	NVIDIA Volta GPU cards (example. V100) NVIDIA Ampere GPU cards (example. A100) NVIDIA Hopper GPU cards (for example. H100)
Note:Only NVIDIA GPU cards support the EDEM CUDA GPU Solver. Other NVIDIA GPU cards are supported within the ranges highlighted.
Hard Disk Drive	100 GB (4 GB for the software)	1 TB or more for simulation data files
